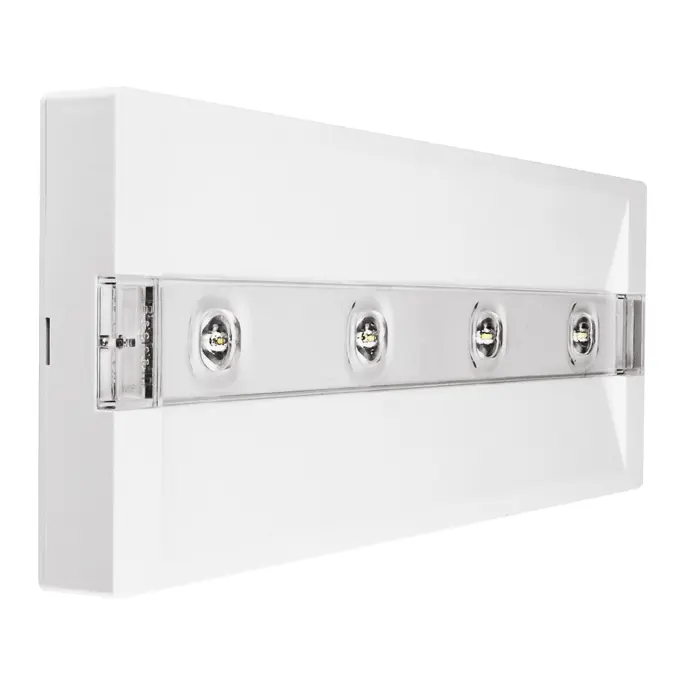

UpLED
LED technology, robustness: high performance, small footprint
UpLED meets a very wide range of needs (6 to 36 W, SE-SA-RM, 1-2-3 h duration). The concept rests on an optical system with 4 precision lenses that exploits the full power of latest-generation LEDs. Its main feature is very high illuminance in a minimal footprint: the 24-36 W version reaches 450 lumens in less than 20 mm of thickness.
- Compact design only 2 cm thick. Luminous flux up to 450 lm.
- Duration adjustable from 1.5 to 8 h. Accessories for special installations, including the three-phase track kit.
- Optical system with 4 clear lenses; 824 version with opal lenses.
Selected filters
No filter — 19 references in this range
Range
Monitoring system
TR
Operating mode
NP (non-maintained)
Duration
1.5 h
Output SE
300 lm
IP rating
IP42
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Duration
1.5 h
Output SE
300 lm
Output SA
100 lm
Monitoring system
TR
Operating mode
NP (non-maintained)
Duration
1.5 h
Output SE
160 lm
IP rating
IP42
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Duration
1.5 h
Output SE
160 lm
Output SA
100 lm
Monitoring system
TR
Operating mode
NP (non-maintained)
Duration
3 h
Output SE
100 lm
IP rating
IP42
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Duration
1 h
Output SE
500 lm
Output SA
100 lm
Monitoring system
TR
Operating mode
NP (non-maintained)
Duration
1.5, 3 h
Output SE
250, 130 lm
IP rating
IP65
Monitoring system
TR
Operating mode
NP (non-maintained)
Duration
1.5, 3 h
Output SE
300, 160 lm
IP rating
IP65
Monitoring system
TR
Operating mode
NP (non-maintained)
Duration
1, 3 h
Output SE
500, 250 lm
IP rating
IP65
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Duration
1.5, 3 h
Output SE
300, 160 lm
Output SA
180 lm
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Duration
1, 3 h
Output SE
500, 250 lm
Output SA
240 lm
Monitoring system
CT
Operating mode
NP (non-maintained)
Duration
1, 1.5, 2, 3, 8 h
Output SE
300, 230, 170, 120, 50 lm
IP rating
IP65
BConnectCENubeIP65
Monitoring system
CT
Operating mode
NP (non-maintained)
Duration
1, 1.5, 2, 3, 8 h
Output SE
500, 350, 250, 180, 80 lm
IP rating
IP65
BConnectCENubeIP65
Monitoring system
CT
Operating mode
NP/P (non-maintained / maintained)
Duration
1, 1.5, 2, 3, 8 h
Output SE
300, 230, 170, 120, 50 lm
Output SA
110 lm
BConnectCENubeIP65
