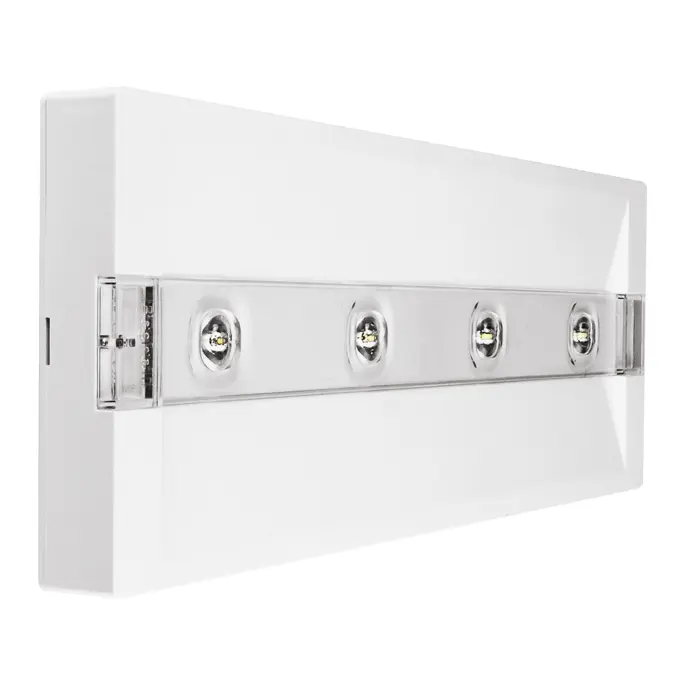

Luminaire de secours compact de 2 cm d'épaisseur seulement, à optique 4 lentilles haute efficacité.
Control system TR
Order code 824XLSA
EAN 8002219879875
Technical data
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.5
Power consumption EM (max)
2.3 W
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Rest mode
optional
Duration
1 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 3.2V 1.5Ah
Battery included
Yes
Number of batteries
1
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
4
Output SE
500 lm
Output SA
100 lm
Equivalent power
24WGL
Viewing distance
20 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Light sensor
No
Installation and applications
Environment
indoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Mechanical data
Height
20 mm
Length
83 mm
Width
213 mm
Weight
0.25 kg
Body material
polycarbonate
Body colour
white RAL 9003
Lens material
opal polycarbonate
IP rating
IP42
IK rating
IK07
Certifications and standards
EN IEC 60598-1:2024, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU)
