Swiss Emergency Lighting

UP LED 824M SE TR 1.5 LF

824M
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.03
Power consumption EM (max)
1 W
Monitoring system
TR
Operating mode
NP (non-maintained)
Rest mode
optional
Duration
1.5 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 3.2V 0.5Ah
Battery included
Yes
Number of batteries
1
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
4
Output SE
160 lm
Equivalent power
11W
Viewing distance
20 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Light sensor
No
Environment
indoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Height
20 mm
Length
83 mm
Width
213 mm
Weight
0.25 kg
Body material
polycarbonate
Body colour
white RAL 9003
Lens material
opal polycarbonate
IP rating
IP42
IK rating
IK07
EAN
8002219729248

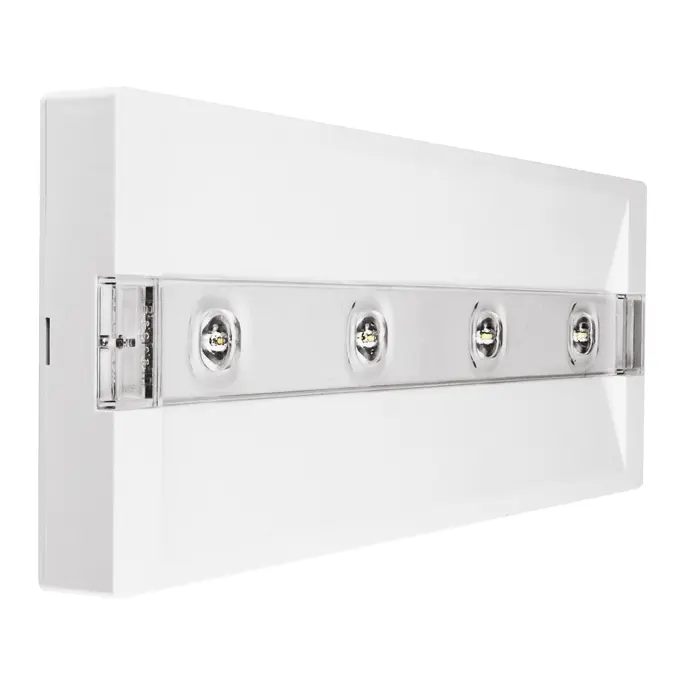

UpLED 824M
Page 1/1Swiss Emergency Lighting Sàrl
