Swiss Emergency Lighting

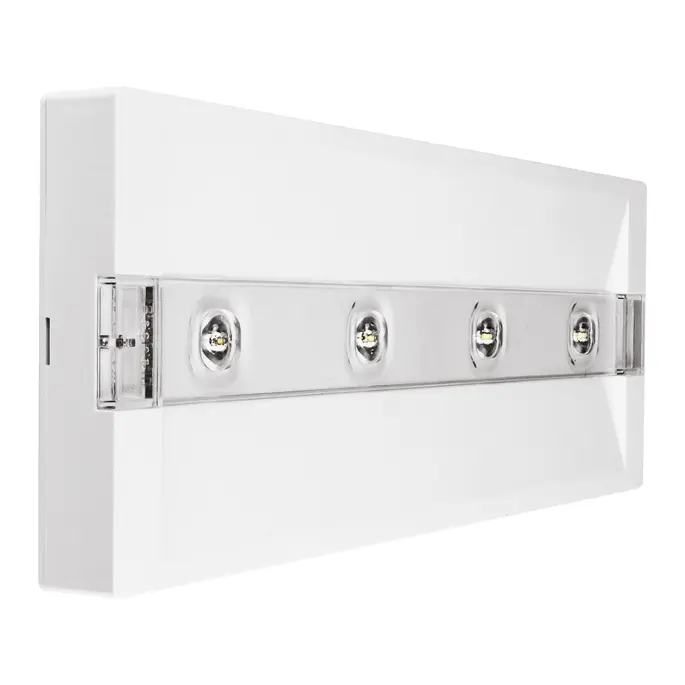

UPLED 1124W IP65 CT SE LTO

4370
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.56
Power consumption EM (max)
1.6 W
Monitoring system
CT
Operating mode
NP (non-maintained)
Rest mode
Yes
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
LTO
Battery
LTO 4.8V 0.5Ah
Battery included
Yes
Number of batteries
1
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
4
Output SE
300, 230, 170, 120, 50 lm
Equivalent power
24WGL
Viewing distance
20 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Light sensor
Yes
Environment
indoor / outdoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Height
20 mm
Length
83 mm
Width
213 mm
Weight
0.3 kg
Body material
polycarbonate
Body colour
white RAL 9003
Lens material
clear polycarbonate
IP rating
IP65
IK rating
IK07
EAN
8002219730336
UpLED 4370
