Swiss Emergency Lighting

G.LUCE T5 RTI AT AR IP65 SE LF

8592L
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.07
Power consumption EM (max)
3.4 W
Monitoring system
AT
Operating mode
NP/P (non-maintained / maintained)
Rest mode
optional
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 6.4V 2Ah
Battery included
Yes
Number of batteries
1
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
16
Output SE
1250, 1000, 800, 550, 210 lm
Equivalent power
36WGL
Photobiological risk
RG0
Viewing distance
28 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Mounting
wall-mounted, recessed, suspended
Environment
indoor / outdoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Height
43 mm
Length
549 mm
Width
147 mm
Weight
2 kg
Body material
polycarbonate
Body colour
white RAL 9003
Diffuser material
clear polycarbonate
Diffuser finish
clear
Reflector material
polycarbonate
IP rating
IP65
IK rating
IK07
EAN
8002219908605

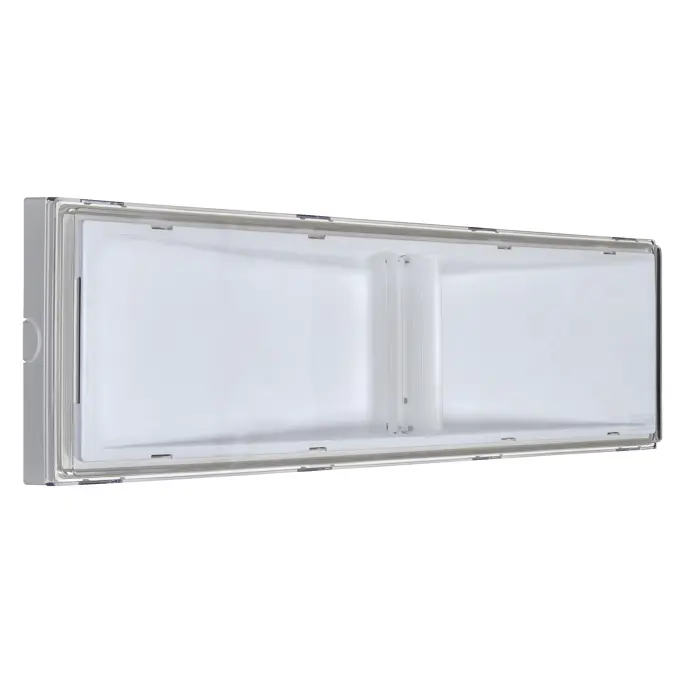

Ticinque RTI 8592L
Page 1/1Swiss Emergency Lighting Sàrl
