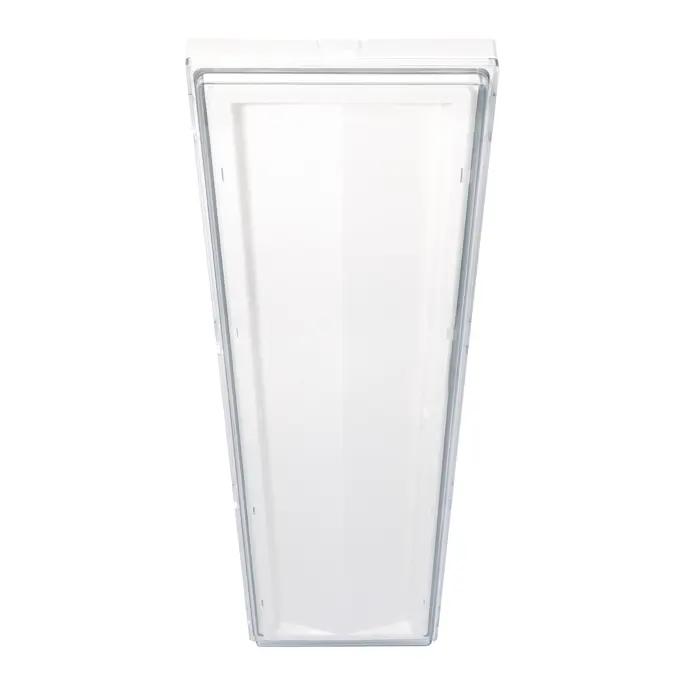

Luminaire de secours à flux lumineux élevé pour les grandes surfaces commerciales et industrielles.
Control system AT
Order code 8592
EAN 8002219725721
Technical data
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
3.4 W
Monitoring system
AT
Operating mode
NP (non-maintained)
Rest mode
optional
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 9.6V 1.5Ah
Battery included
Yes
Number of batteries
1
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
32
Output SE
1250, 1000, 800, 550, 210 lm
Equivalent power
36WGL
Photobiological risk
RG0
Viewing distance
28 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Installation and applications
Environment
indoor / outdoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Mechanical data
Height
43 mm
Length
549 mm
Width
147 mm
Weight
2 kg
Body material
polycarbonate
Body colour
white RAL 9003
Diffuser material
clear polycarbonate
Diffuser finish
clear
Reflector material
polycarbonate
IP rating
IP65
IK rating
IK07
Certifications and standards
EN IEC 60598-1:2024, EN 60598-2-2:2012, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU)
