Swiss Emergency Lighting

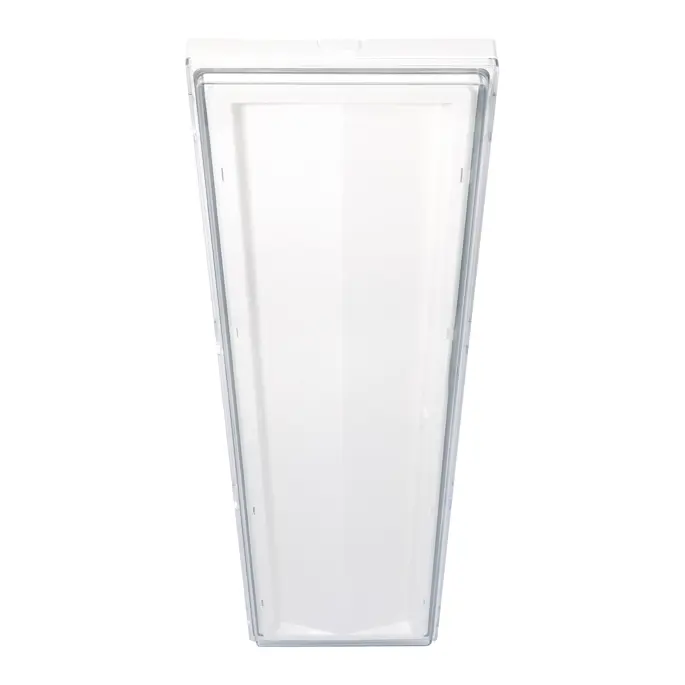

GRANLUCE T5 LED IP65 SA 2LF

8591
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.16
Power consumption EM (max)
3.8 W
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Rest mode
optional
Duration
2 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 9.6V 1.5Ah
Battery included
Yes
Number of batteries
1
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
32
Output SE
800 lm
Output SA
300 lm
Equivalent power
36WGL
Photobiological risk
RG0
Viewing distance
28 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Environment
indoor / outdoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Height
43 mm
Length
549 mm
Width
147 mm
Weight
2 kg
Body material
polycarbonate
Body colour
white RAL 9003
Diffuser material
clear polycarbonate
Diffuser finish
clear
Reflector material
polycarbonate
IP rating
IP65
IK rating
IK07
EAN
8002219723611
Ticinque LED 8591
