Swiss Emergency Lighting

SIGNLED 26M CT

37225
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
198 V
Supply range (max)
254 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
5 W
Power consumption ML
8 W
Monitoring system
CT
Operating mode
NP/P/PS
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LIFE 6.4V 1,5Ah
Battery included
Yes
Number of batteries
1
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
-45 °C
Ambient temperature (max)
-45 °C
Insulation class
I
Colour temperature
6500 K
CRI (colour rendering)
>70
Number of LEDs
3
Photobiological risk
RG0
Viewing distance
26 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Mounting
wall-mounted, suspended, surface / suspended
Environment
indoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Height
150 mm
Length
170 mm
Width
170 mm
Weight
0 kg
Body material
sheet steel
Body colour
white RAL 9003
IP rating
IP40
IK rating
IK05
EAN
8002219925602

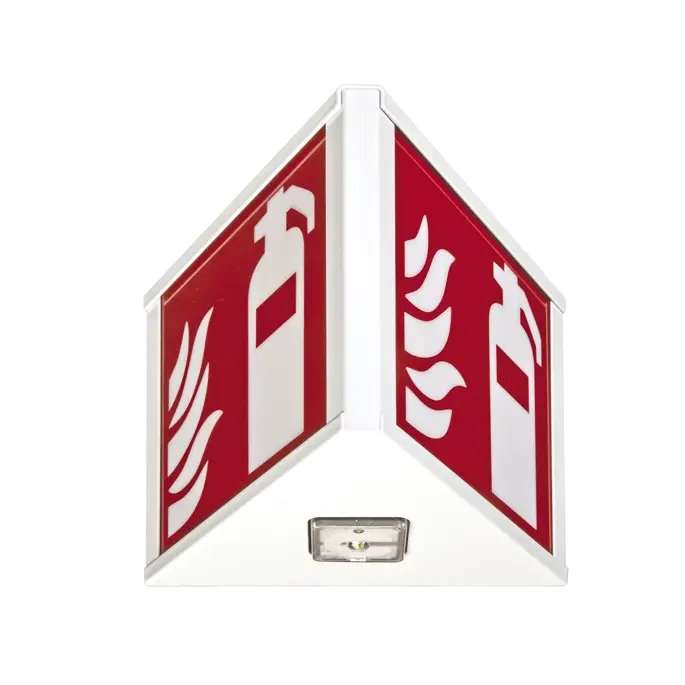

Sign LED 37225
