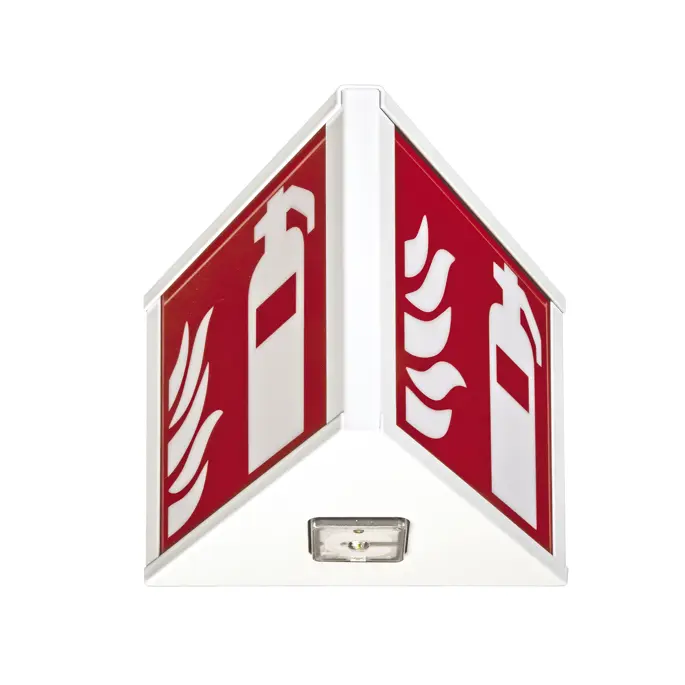

Luminaire de forme triangulaire à double fonction simultanée : balisage de sécurité et éclairage de secours, avec signalisation sur 2 faces. Corps en profilés de tôle d'acier à arêtes vives.
Control system LG EPS
Order code 31316
EAN 8002219924933
Technical data
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
198 V
Supply range (max)
254 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
7.6 W
Power consumption ML
15.7 W
Monitoring system
LG EPS
Operating mode
NP/P (non-maintained / maintained)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
6500 K
CRI (colour rendering)
>70
Number of LEDs
2
Photobiological risk
RG0
Viewing distance
26 m
Glow-wire resistance
850 °C - 30s.
Installation and applications
Mounting
wall-mounted, suspended, surface / suspended
Environment
indoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Mechanical data
Height
150 mm
Length
167 mm
Width
140 mm
Weight
0.8 kg
Body material
sheet steel
Body colour
white RAL 9003
IP rating
IP40
IK rating
IK05
Certifications and standards
EN IEC 60598-1:2024, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU), EN 62493:2015
