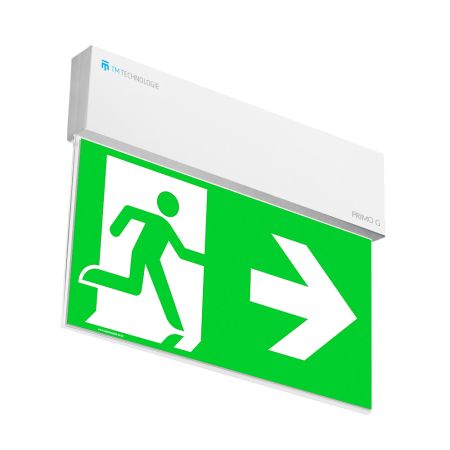

PRIMO G 40E 01 CB W

TM-PG.4ECB0000W

Category

emergency luminaires

Application

escape route indication

Colour (RAL)

white, RAL9003

Colour finish

painted

Version

CB – central battery

Operating mode

IP rating

IP20

IK rating

IK05

Protection class

Material

steel

Mounting method*

surface, wall, ceiling

Suitable for a pictogram

oui

Supplied with a pictogram?

oui

Pictogram dimensions

200x200 mm

Escape sign dimensions

400x200 mm

Pictogram type

film

Graphic number

Pictogram logo

TM TECHNOLOGIE

Luminance

>200 cd/m²

Viewing distance

40 m

Colour temperature

5700 K

Nominal AC voltage

210-250 V

Nominal DC voltage

186-254 V

Light source

LED

Light source power

1.5 W

LED service life

50000 h

Minimum temperature

-15 °C

Maximum temperature

+55 °C

Warranty

60 months

Net dimensions L x W x H

401 mm x 30 mm x 269 mm

EAN

5902052557080

* Several mounting options are possible with an additional accessory.
