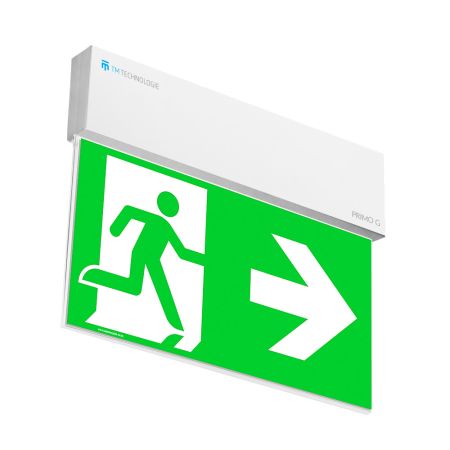

PRIMO G 30E 301 M DALI-2 W

TM-PG.3EDLM300W

Category

emergency luminaires

Application

escape route indication

Colour (RAL)

white, RAL9003

Colour finish

painted

Version

DALI2

Operating mode

Duration

3 h

IP rating

IP20

IK rating

IK05

Protection class

Material

steel

Mounting method*

surface, wall, ceiling

Suitable for a pictogram

oui

Supplied with a pictogram?

oui

Pictogram dimensions

150x150 mm

Escape sign dimensions

300x150 mm

Pictogram type

film

Graphic number

Pictogram logo

TM TECHNOLOGIE

Luminance

>250 cd/m²

Viewing distance

30 m

Colour temperature

5700 K

Nominal AC voltage

210-250 V

Light source

LED

Light source power

1 W

LED service life

50000 h

Minimum temperature

+10 °C

Maximum temperature

+35 °C

Battery

LiFePO4/C (LN) 6.4V 1.5-1.6Ah

DALI type

Warranty

60 months

Net dimensions L x W x H

301 mm x 30 mm x 219 mm

EAN

5902052572908

* Several mounting options are possible with an additional accessory.
