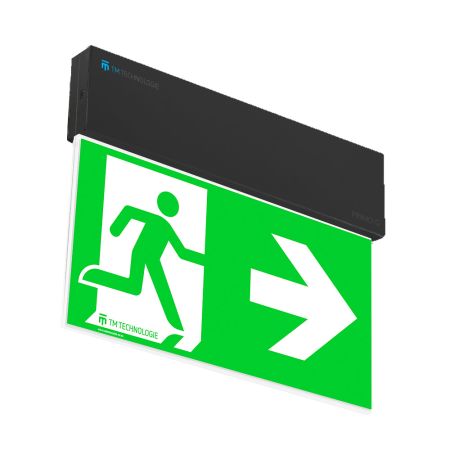

Order code TM-PG.3ECB0000B
EAN 5902052559473
Technical data
Category
emergency luminaires
Colour (RAL)
black, RAL9005
Colour finish
painted
Version
CB – central battery
Operating mode
CB
Protection class
I
Material
steel
Mounting method
surface, wall, ceiling
Suitable for a pictogram
oui
Supplied with a pictogram?
oui
Pictogram dimensions
150x150 mm
Escape sign dimensions
300x150 mm
Pictogram type
film
Graphic number
K6
Pictogram logo
TM TECHNOLOGIE
Luminance
>250 cd/m²
Viewing distance
30 m
Colour temperature
5700 K
Nominal AC voltage
210-250 V
Nominal DC voltage
186-254 V
Light source
LED
Light source power
1 W
LED service life
50000 h
Minimum temperature
-15 °C
Maximum temperature
+55 °C
Warranty
60 months
Net dimensions L x W x H
301 mm x 30 mm x 219 mm
Installation and applications
Application
escape route indication
Mechanical data
IP rating
IP20
IK rating
IK05
