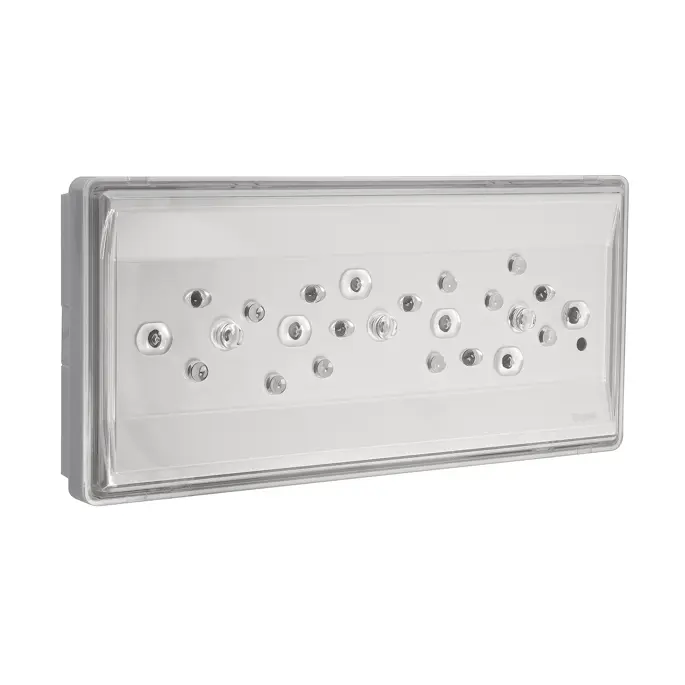

Luminaire de secours innovant à étrier de dérivation Modula intégré, permettant la programmation et le câblage sans démonter l'appareil.
Control system CT
Order code 18841
EAN 8002219894021
Technical data
Supply voltage type
AC
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.61
Power consumption EM (max)
9 W
Monitoring system
CT
Operating mode
NP/P/PS
Rest mode
Yes
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
2xLife 6.4V 2Ah
Number of batteries
2
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
Number of LEDs
24
Output SE
2700, 2000, 1500, 1000, 400 lm
Output SA
250 lm
Equivalent power
36WGL
Glow-wire resistance
850 °C - 30s.
Installation and applications
Mounting
wall-mounted, 6M flush box, ceiling-mounted, recessed, false-ceiling recessed, suspended, track, busbar track
Environment
indoor / outdoor
Areas of application
offices, high-risk areas, escape routes, residential blocks, residential, museums, shopping centres, architectural, car parks, public areas
ATEX
No
Mechanical data
Height
39 mm
Length
265 mm
Width
119 mm
Weight
0.55 kg
Body material
polycarbonate
Body colour
white RAL 9003
Trim colour
white RAL 9003
Diffuser material
polycarbonate
Lens material
polycarbonate
Reflector material
polycarbonate
Reflector colour
white RAL 9003
IP rating
IP65
IK rating
IK07
Certifications and standards
EN IEC 60598-1:2024, EN 60598-2-2:2012, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU)
