Swiss Emergency Lighting

MATRIX 1500 REG IP65 HT/CTS

17923
Supply voltage type
AC/DC
Nominal voltage (AC)
230 Vac
Nominal voltage (DC)
216 Vdc
Supply range (min)
198 V
Supply range (max)
254 V
Supply range (DC)
176÷276 VDC
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.52
Power consumption EM (max)
7.1 W
Power consumption ML
14 W
Monitoring system
HT-CTS
Operating mode
NP/P (non-maintained / maintained)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
24
Output SE
1500 lm
Output SA
1500 lm
Equivalent power
36WGL
Photobiological risk
RG0
Viewing distance
20 m
Glow-wire resistance
850 °C - 30s.
Mounting
wall-mounted, 6M flush box, ceiling-mounted, recessed, false-ceiling recessed, surface / suspended, suspended, track, busbar track
Environment
indoor / outdoor
Areas of application
offices, high-risk areas, escape routes, residential blocks, residential, museums, shopping centres, architectural, car parks, public areas
ATEX
No
Height
39 mm
Length
265 mm
Width
119 mm
Weight
0.55 kg
Cut-out diameter
300 mm
Cut-out width
120 mm
Body material
polycarbonate
Body colour
white RAL 9003
Trim colour
white RAL 9003
Diffuser material
polycarbonate
Diffuser finish
clear
Lens material
polycarbonate
Reflector material
polycarbonate
Reflector colour
white RAL 9003
IP rating
IP65
IK rating
IK07
EAN
8002219894045

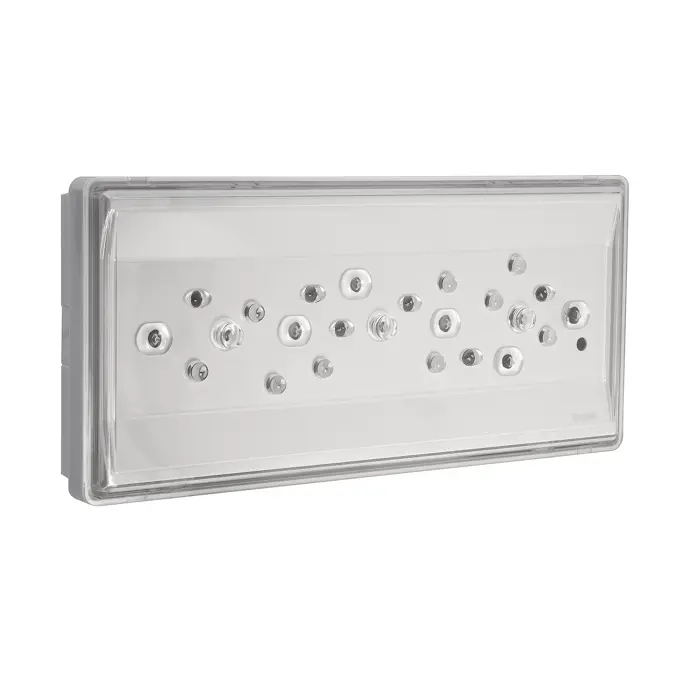

Pratica Modula Matrix 17923
