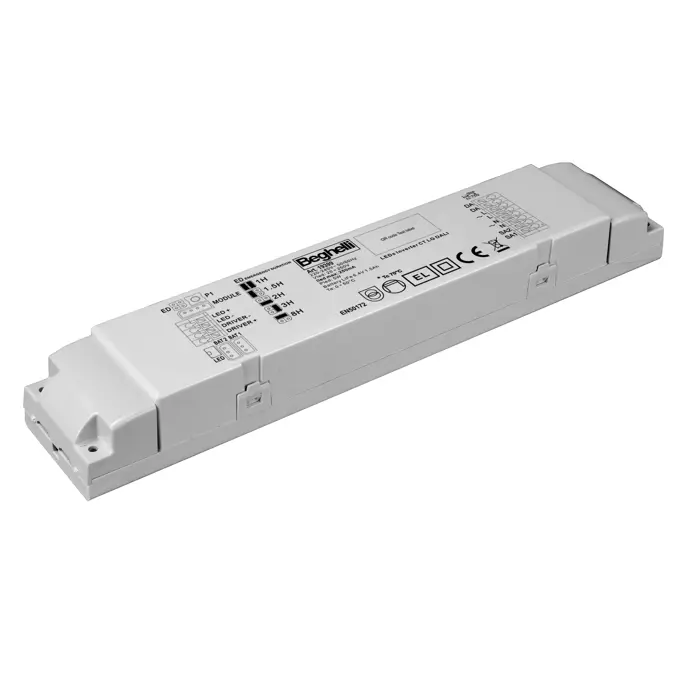

INV UNIV CT 5W 20-240V
19399
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.57
Power consumption EM (max)
3.7 W
Output power
5, 3.3, 2.5, 1.7, 0.7 W
Monitoring system
CT
Operating mode
NP (non-maintained)
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 6.4V 2Ah
Battery included
Yes
Number of batteries
1
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
50 °C
Insulation class
II
Glow-wire resistance
850 °C - 30s.
Output voltage (min)
20 Vdc
Output voltage (max)
240 Vdc
Height
30 mm
Length
239 mm
Width
46 mm
Body material
polycarbonate
Body colour
Gris
IP rating
IP20
IK rating
IK05
EAN
8002219898401
