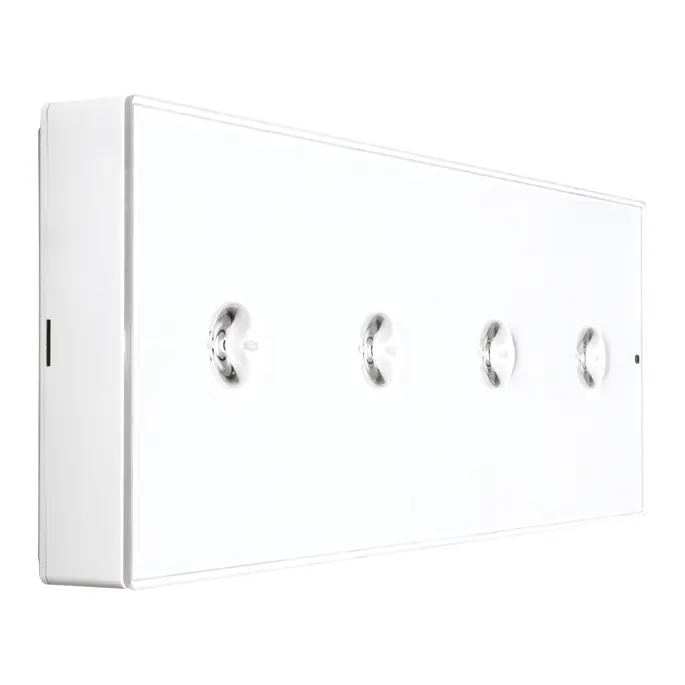

Luminaire de secours ligne ArchiEco, corps peignable au design épuré, réalisé en matériaux recyclables et partiellement compostables.
Control system TR
Order code 19603
EAN 8002219868893
Technical data
Supply voltage type
AC
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.1
Power consumption EM (max)
2.5 W
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Rest mode
optional
Duration
1.5, 3 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 3.2V 1.5Ah
Battery included
Yes
Number of batteries
1
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
4
Output SE
300, 160 lm
Output SA
170 lm
Equivalent power
24W
Photobiological risk
RG0
Glow-wire resistance
650 °C - 30s.
Light sensor
No
Installation and applications
Mounting
Wall
Environment
indoor
Areas of application
offices, escape routes, residential blocks, commercial areas, residential, showrooms, conference centres, art and culture, hotels, nightclubs
ATEX
No
Mechanical data
Height
20 mm
Length
83 mm
Width
213 mm
Weight
0.25 kg
Body material
PHA BIO
Body colour
white RAL 9003
Body finish
paintable
Diffuser material
clear thermoplastic PMMA
Lens material
clear thermoplastic PMMA
IP rating
IP42
IK rating
IK07
Certifications and standards
EN IEC 60598-1:2024, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU), EN 62493:2015
