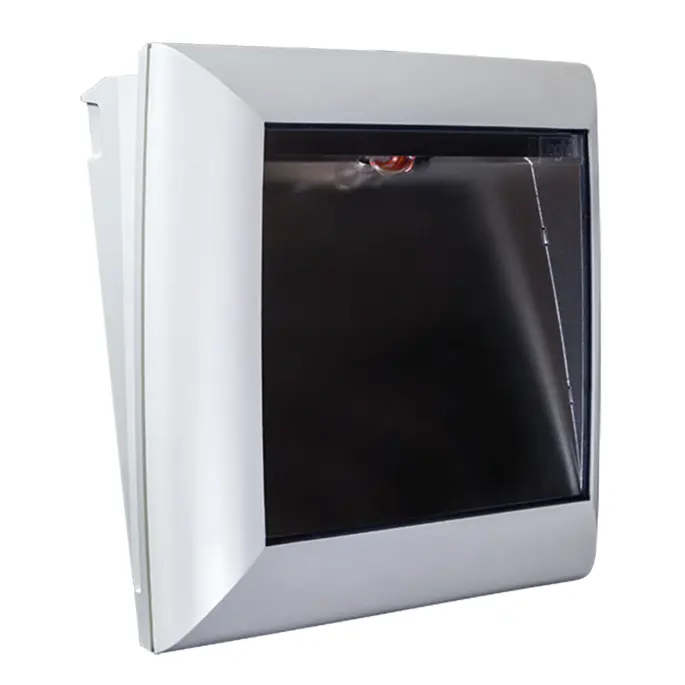

Luminaire de secours avec lentille additionnelle orientant le faisceau vers le sol, conçu pour les voies d'évacuation.
Control system CTS-LG24
Order code 32090
EAN 8002219745217
Technical data
Supply voltage type
AC/DC
Nominal voltage (AC)
230 Vac
Nominal voltage (DC)
24 Vdc
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
3 W
Monitoring system
CTS-LG24
Operating mode
NP/P (non-maintained / maintained)
Battery included
No
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
III/II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
1
Output SE
260 lm
Output SA
550 lm
Equivalent power
24WGL
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Inrush current
4.5 A
Inrush current duration
0.04 ms
Installation and applications
Environment
indoor / outdoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Mechanical data
Height
52 mm
Length
155 mm
Width
213 mm
Weight
0.7 kg
Body material
polycarbonate
Body colour
white RAL 9003
Trim colour
white RAL 9003
Diffuser material
clear polycarbonate
Diffuser finish
clear
Lens material
clear thermoplastic PMMA
Reflector material
satin aluminium
IP rating
IP65
IK rating
IK07
Certifications and standards
EN IEC 60598-1:2024, EN 60598-2-2:2012, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU)
