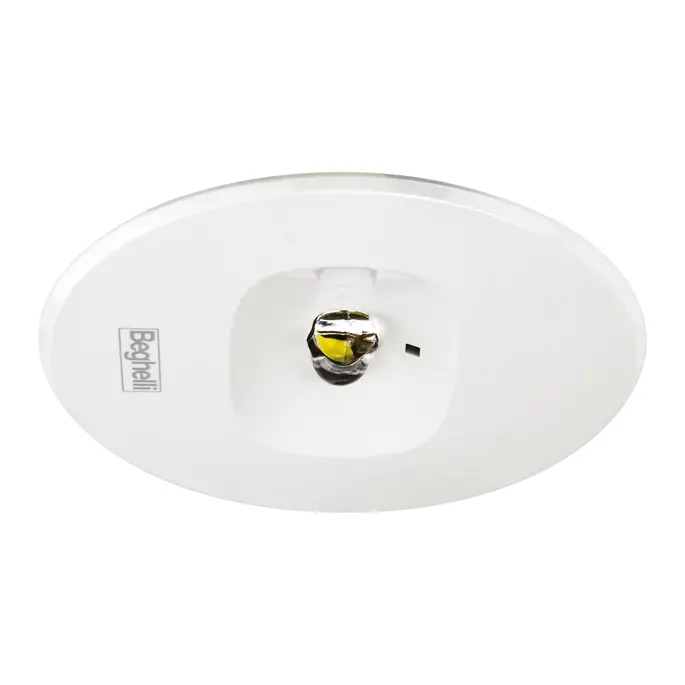

Spot d'éclairage de secours à hautes performances, doté de trois lentilles interchangeables pour différents faisceaux lumineux.
Control system CT
Order code 19338
EAN 8002219744654
Technical data
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Nominal voltage (DC)
230 Vdc
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
5 W
Monitoring system
CT
Operating mode
NP/P (non-maintained / maintained)
Rest mode
Yes
Duration
1, 1.5, 2, 3, 8 h
Recharge time
6 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 6.4V 0.6Ah
Battery included
Yes
Number of batteries
1
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>70
Number of LEDs
1
Output SE
250, 200, 150, 80, 50 lm
Output SA
220 lm
Equivalent power
24W
Glow-wire resistance
850 °C - 30s.
Light sensor
Yes
Installation and applications
Mounting
recessed, false-ceiling recessed
Environment
indoor
Areas of application
offices, public areas, retail
ATEX
No
Mechanical data
Height
28 mm
Diameter
120 mm
Weight
0.8 kg
Cut-out diameter
80 mm
Body material
polycarbonate
Body colour
white RAL 9010
Lens material
clear thermoplastic PMMA
IP rating
IP20/IP42
IP rating (optic)
IP42
IP rating (housing)
IP20
IK rating
IK07
Certifications and standards
EN IEC 60598-1:2024, EN 60598-2-2:2012, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU)
