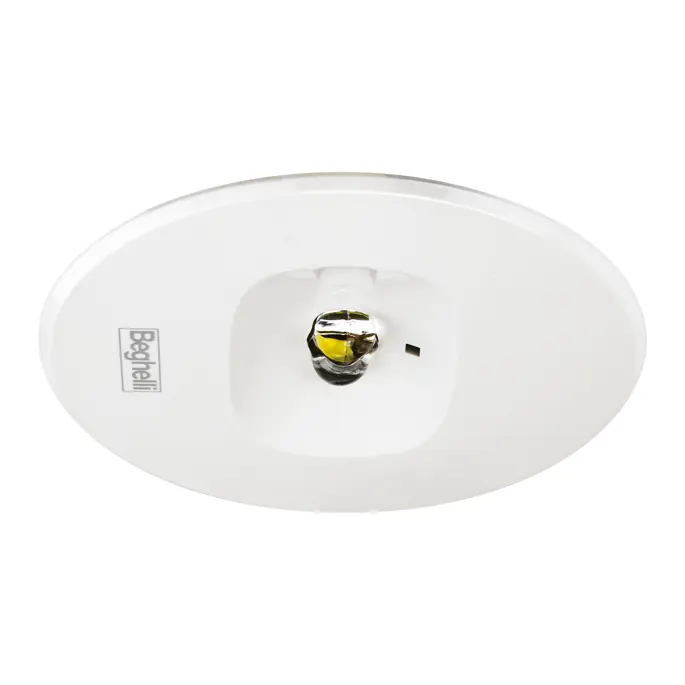

Spot d'éclairage de secours à hautes performances, doté de trois lentilles interchangeables pour différents faisceaux lumineux.
Control system HT230
Order code 19330
EAN 8002219501370
Technical data
Supply voltage type
AC/DC
Nominal voltage (AC)
230 Vac
Nominal voltage (DC)
216 Vdc
Supply range (min)
95 V
Supply range (max)
254 V
Supply range (DC)
95-276 Vdc
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
4.8 W
Power consumption ML
9.6 W
Monitoring system
HT230
Operating mode
NP/P (non-maintained / maintained)
Battery included
No
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>70
Number of LEDs
1
Output SE
380 lm
Output SA
380 lm
Equivalent power
24WGL
Photobiological risk
RG1
Glow-wire resistance
850 °C - 30s.
Inrush current
5 A
Inrush current duration
0.5 ms
Installation and applications
Mounting
ceiling-mounted, recessed, false-ceiling recessed
Environment
indoor
Areas of application
offices, public areas, retail
ATEX
No
Mechanical data
Height
28 mm
Diameter
120 mm
Weight
0.8 kg
Cut-out diameter
80 mm
Body material
sheet steel
Body colour
white RAL 9010
Trim material
polycarbonate
Trim colour
white RAL 9010
Lens material
clear thermoplastic PMMA
IP rating
IP20/IP42
IP rating (optic)
IP42
IP rating (housing)
IP20
IK rating
IK07
Certifications and standards
EN IEC 60598-1:2024, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU), EN 62493:2015
