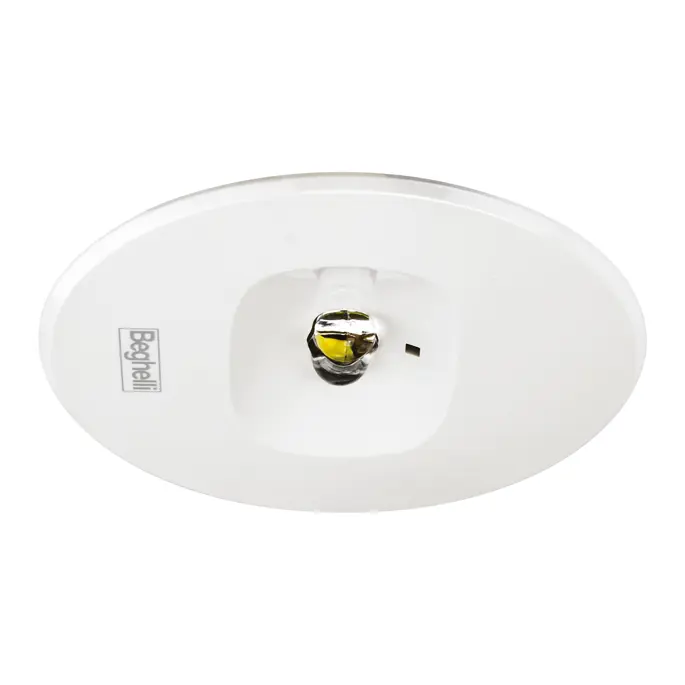

L.LARGA DWRC LGS24 LS-UV
17879
Supply voltage type
DC
Nominal voltage (DC)
24 Vdc
Supply range (DC)
24 V +/- 20 %
Power consumption EM (max)
3.8 W
Monitoring system
CTS-LG24
Operating mode
NP/P (non-maintained / maintained)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
III
Colour temperature
4000 K
CRI (colour rendering)
>70
Number of LEDs
1
Output SE
380 lm
Output SA
380 lm
Equivalent power
24WGL
Photobiological risk
RG1
Glow-wire resistance
850 °C - 30s.
Mounting
ceiling-mounted, recessed, false-ceiling recessed
Environment
indoor
Areas of application
offices, public areas, retail
ATEX
No
Height
28 mm
Diameter
120 mm
Weight
0.8 kg
Cut-out diameter
80 mm
Body material
sheet steel
Body colour
white RAL 9010
Trim material
polycarbonate
Trim colour
white RAL 9010
Lens material
clear thermoplastic PMMA
IP rating
IP20/IP42
IP rating (optic)
IP42
IP rating (housing)
IP20
IK rating
IK07
EAN
8002219868794
