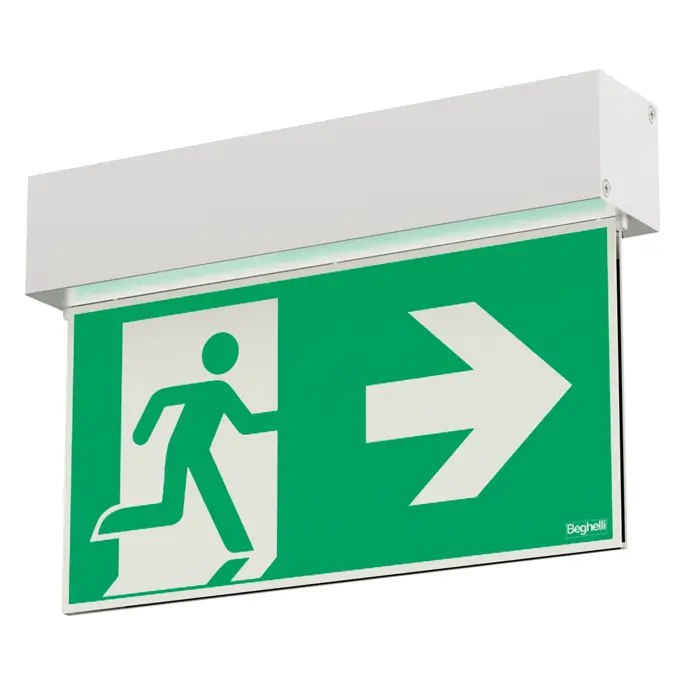

IRONFLAG HT DALI 30M
17899DL
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Monitoring system
HT-DALI
Operating mode
HT (unlimited duration)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
36
Photobiological risk
RG0
Viewing distance
30 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Inrush current
4 A
Inrush current duration
0.04 ms
Mounting
wall-mounted, bracket, ceiling-mounted, recessed, false-ceiling recessed, suspended, surface / suspended
Environment
indoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Height
45 mm
Length
330 mm
Width
210 mm
Weight
0.8 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP42
IK rating
IK05
EAN
8002219913111
