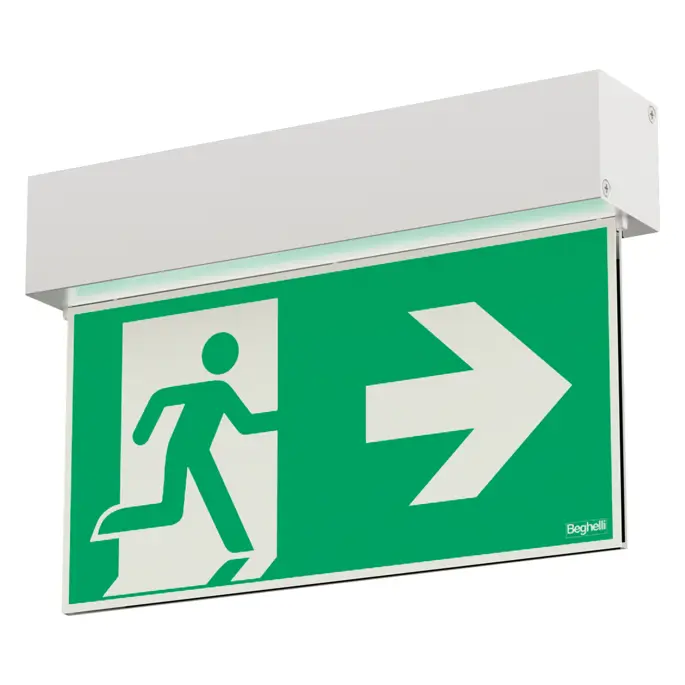

Bloc de balisage polyvalent à corps aluminium et écran PMMA.
Control system HT230
Order code 17899
EAN 8002219869753
Technical data
Supply voltage type
AC/DC
Nominal voltage (AC)
230 Vac
Nominal voltage (DC)
216 Vdc
Supply range (min)
95 V
Supply range (max)
254 V
Supply range (DC)
95-276 Vdc
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
4.7 W
Power consumption ML
9.5 W
Monitoring system
HT230
Operating mode
HT (unlimited duration)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
36
Photobiological risk
RG0
Viewing distance
30 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Inrush current
5 A
Inrush current duration
0.5 ms
Installation and applications
Mounting
wall-mounted, bracket, ceiling-mounted, recessed, false-ceiling recessed, suspended, surface / suspended
Environment
indoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Mechanical data
Height
45 mm
Length
330 mm
Width
210 mm
Weight
0.8 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP42
IK rating
IK05
Certifications and standards
EN IEC 60598-1:2024, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU), EN 62493:2015
