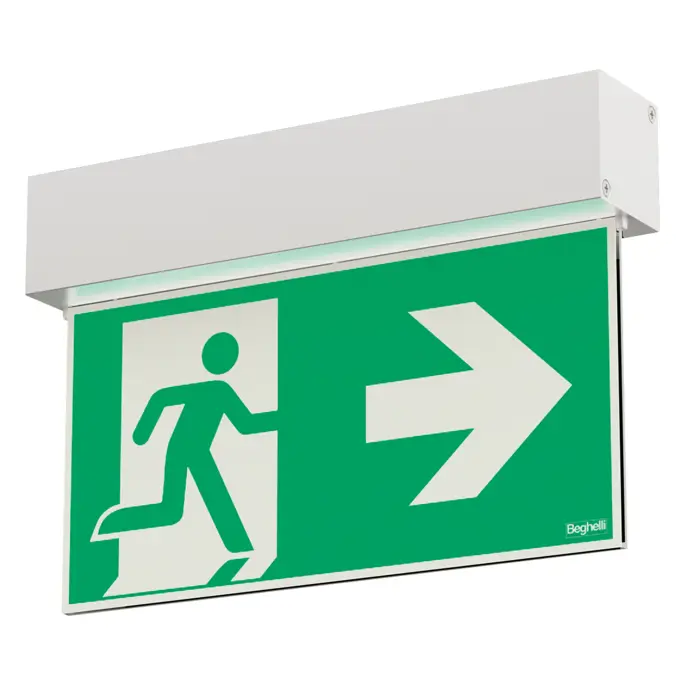

IRONFLAG HT 20M
17898
Supply voltage type
AC/DC
Nominal voltage (AC)
230 Vac
Nominal voltage (DC)
216 Vdc
Supply range (min)
95 V
Supply range (max)
254 V
Supply range (DC)
95-276 Vdc
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
3.1 W
Power consumption ML
6.6 W
Monitoring system
HT230
Operating mode
HT (unlimited duration)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
24
Photobiological risk
RG0
Viewing distance
20 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Inrush current
5 A
Inrush current duration
0.5 ms
Mounting
wall-mounted, bracket, ceiling-mounted, recessed, false-ceiling recessed, suspended, surface / suspended
Environment
indoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Height
45 mm
Length
230 mm
Width
160 mm
Weight
0.5 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP42
IK rating
IK05
EAN
8002219869739
