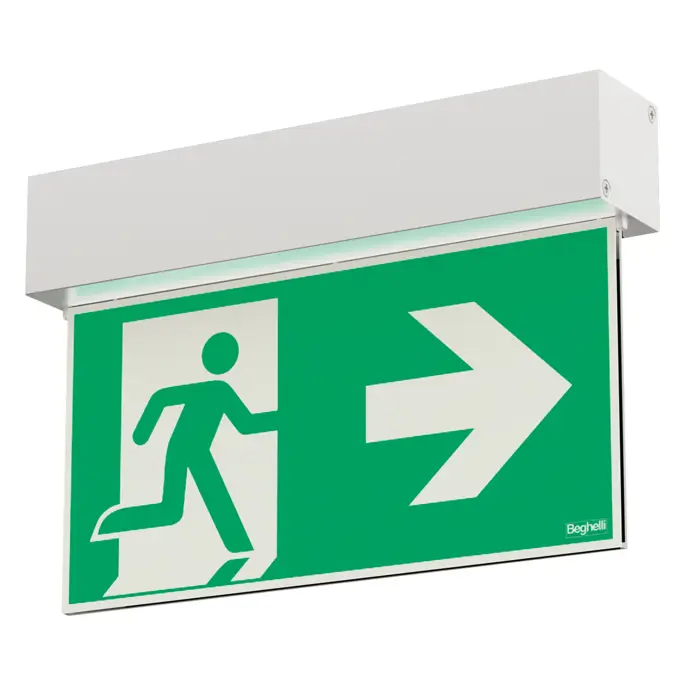

IRONFLAG SUSP LGS24 20M
17896
Supply voltage type
DC
Nominal voltage (DC)
24 Vdc
Supply range (DC)
24 V +/- 20 %
Power consumption EM (max)
2.5 W
Monitoring system
CTS-LG24
Operating mode
NP/P (non-maintained / maintained)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
III
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
24
Photobiological risk
RG0
Viewing distance
20 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Mounting
cable suspension, ceiling-mounted, recessed, false-ceiling recessed
Environment
indoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Height
45 mm
Length
230 mm
Width
135 mm
Weight
0.5 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP42
IK rating
IK05
EAN
8002219869692
