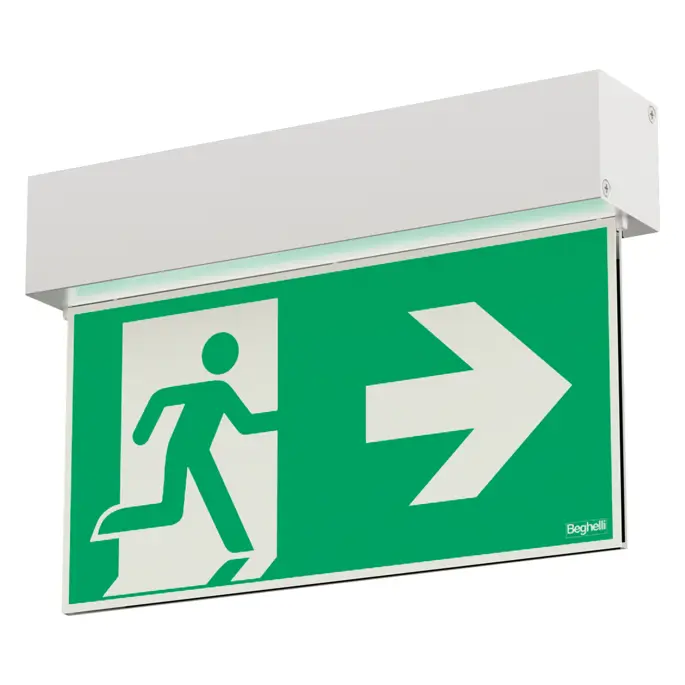

IRONFLAG LGS24 30M
17895
Supply voltage type
DC
Nominal voltage (DC)
24 Vdc
Supply range (DC)
24 V +/- 20 %
Power consumption EM (max)
3.7 W
Monitoring system
CTS-LG24
Operating mode
NP/P (non-maintained / maintained)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
III
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
36
Photobiological risk
RG0
Viewing distance
30 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Mounting
wall-mounted, bracket, ceiling-mounted, recessed, false-ceiling recessed, suspended, surface / suspended
Environment
indoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Height
45 mm
Length
330 mm
Width
210 mm
Weight
0.8 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP42
IK rating
IK05
EAN
8002219869517
