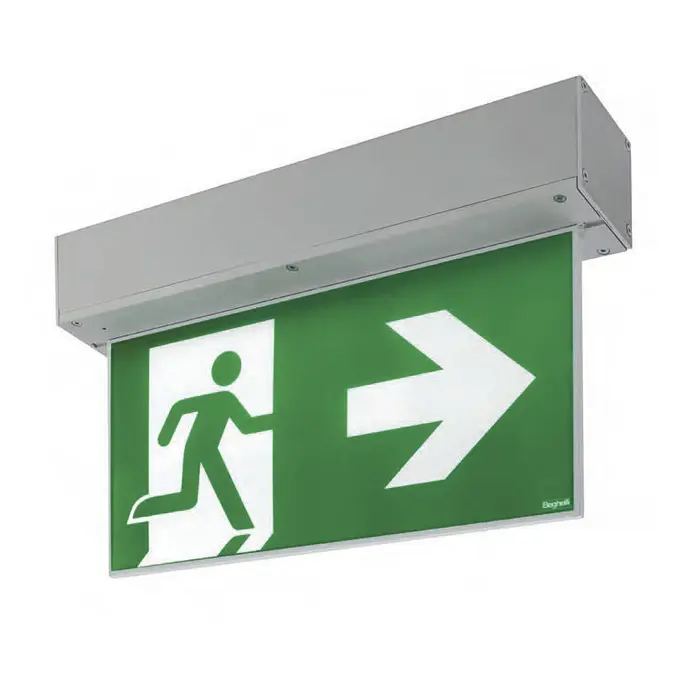

IRONFLAG IP65 CT 30M SE/SA
4384
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.55
Power consumption EM (max)
5 W
Monitoring system
CT
Operating mode
NP/P/PS
Rest mode
Yes
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
2 x LiFe 6.4V 0.6Ah
Battery included
Yes
Number of batteries
2
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
36
Photobiological risk
RG0
Viewing distance
30 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Light sensor
Yes
Environment
indoor / outdoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Height
55 mm
Length
351 mm
Width
223 mm
Weight
1.5 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP65
IK rating
IK05
EAN
8002219892881
