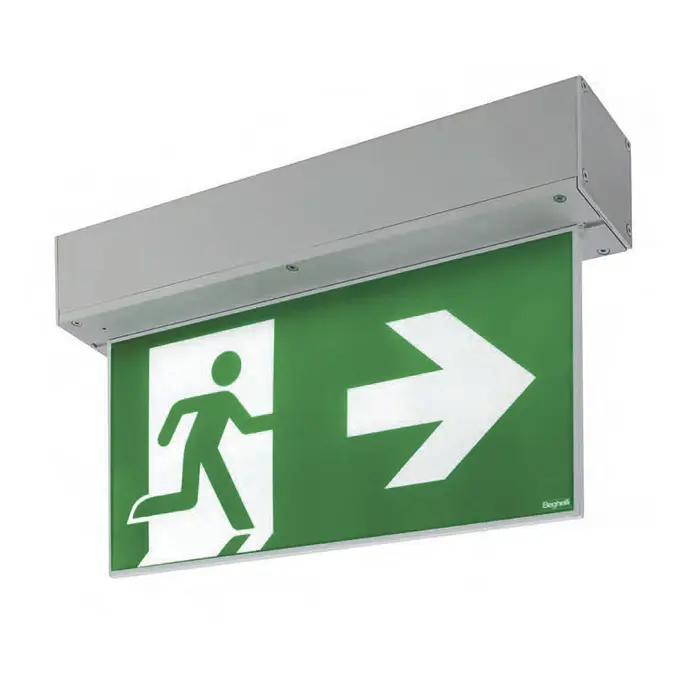

Bloc de balisage polyvalent à corps aluminium et écran PMMA.
Control system TR
Order code 4383
EAN 8002219892867
Technical data
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.5
Power consumption EM (max)
3 W
Monitoring system
TR
Operating mode
NP/P (non-maintained / maintained)
Rest mode
Yes
Duration
1, 2, 3 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 3.2V 1.5Ah
Battery included
Yes
Number of batteries
1
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
36
Photobiological risk
RG0
Viewing distance
30 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Installation and applications
Environment
indoor / outdoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Mechanical data
Height
55 mm
Length
351 mm
Width
223 mm
Weight
1.5 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP65
IK rating
IK05
Certifications and standards
EN IEC 60598-1:2024, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU), EN 62493:2015
