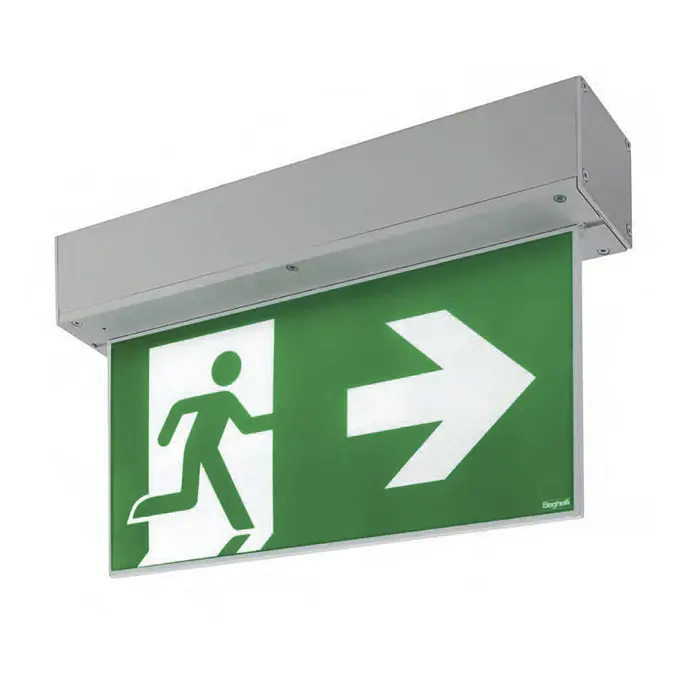

Bloc de balisage polyvalent à corps aluminium et écran PMMA.
Control system CTS-LG24
Order code 17925
EAN 8002219892935
Technical data
Supply voltage type
DC
Nominal voltage (DC)
24 Vdc
Supply range (DC)
24 V +/- 20 %
Power consumption EM (max)
3.7 W
Monitoring system
CTS-LG24
Operating mode
NP/P (non-maintained / maintained)
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
III
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
36
Photobiological risk
RG0
Viewing distance
30 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Installation and applications
Mounting
wall-mounted, bracket, ceiling-mounted, suspended, surface / suspended
Environment
indoor / outdoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Mechanical data
Height
55 mm
Length
351 mm
Width
223 mm
Weight
1.5 kg
Body material
extruded aluminium
Body colour
aluminium
IP rating
IP65
IK rating
IK05
Certifications and standards
EN IEC 60598-1:2024, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU), EN 62493:2015
