Swiss Emergency Lighting

EXIT DF60M CT SA LF

4382
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.53
Power consumption EM (max)
4 W
Monitoring system
CT
Operating mode
NP/P/PS
Rest mode
Yes
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
2x LiFe 6.4V 0.6Ah
Battery included
Yes
Number of batteries
2
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
CRI (colour rendering)
>80
Number of LEDs
72
Viewing distance
60 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Light sensor
Yes
Environment
indoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Height
30 mm
Length
629 mm
Width
355 mm
Weight
1 kg
Body material
ABS
Body colour
white RAL 9003
Diffuser material
clear thermoplastic PMMA
IP rating
IP40
IK rating
IK05
EAN
8002219890108

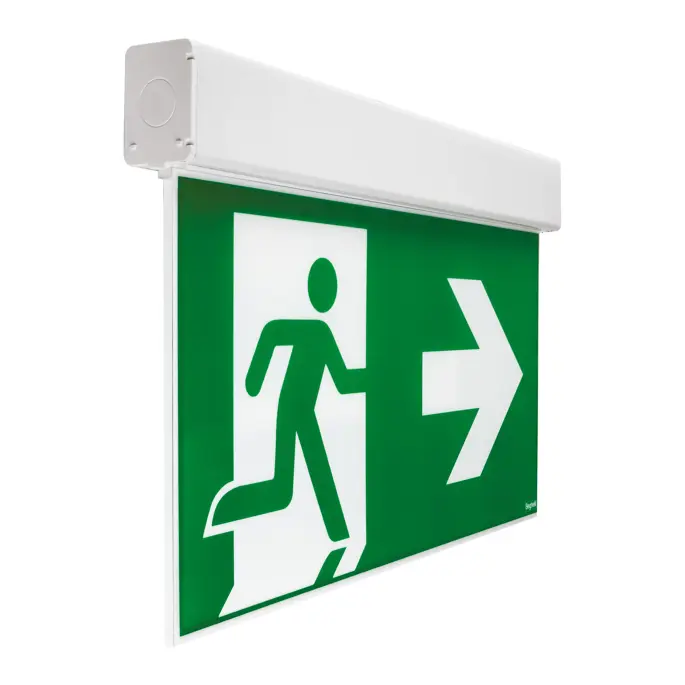

Exit 4382
Page 1/1Swiss Emergency Lighting Sàrl
