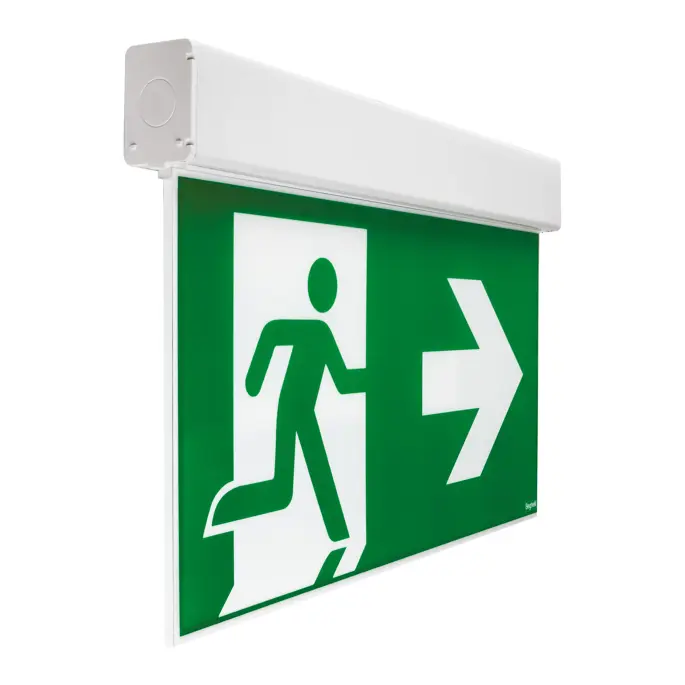

Bloc de balisage d'évacuation avec une distance de visibilité de 30 mètres.
Control system CT
Order code 4381
EAN 8002219730459
Technical data
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.53
Power consumption EM (max)
4 W
Monitoring system
CT
Operating mode
NP/P/PS
Rest mode
Yes
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
2x LiFe 6.4V 0.6Ah
Battery included
Yes
Number of batteries
2
Duration test length
60
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
CRI (colour rendering)
>80
Number of LEDs
36
Viewing distance
30 m
Pictograms supplied
Yes
Glow-wire resistance
850 °C - 30s.
Light sensor
Yes
Installation and applications
Environment
indoor
Areas of application
offices, safety marking, public areas, retail
ATEX
No
Mechanical data
Height
30 mm
Length
314 mm
Width
194 mm
Weight
0.5 kg
Body material
ABS
Body colour
white RAL 9003
Diffuser material
clear thermoplastic PMMA
IP rating
IP40
IK rating
IK05
Certifications and standards
EN IEC 60598-1:2024, EN 60598-2-2:2012, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU)
