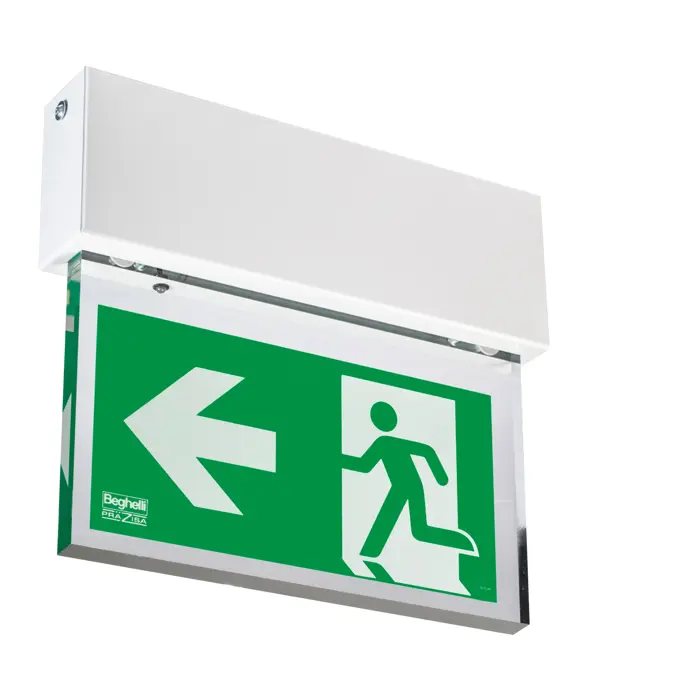

DISPOS EVO 22M AT CT WA/DA
Control system CT
Order code 37000
EAN 8002219925244
Technical data
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
198 V
Supply range (max)
254 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power consumption EM (max)
5 W
Power consumption ML
8 W
Monitoring system
CT
Operating mode
NP/P/PS
Duration
1, 1.5, 2, 3, 8 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LIFE 6.4V 1,5Ah
Battery included
Yes
Number of batteries
1
Duration test frequency
182
Function test frequency
28
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
I
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
24
Photobiological risk
RG0
Viewing distance
22 m
Glow-wire resistance
850 °C - 30s.
Light sensor
No
Installation and applications
Mounting
wall-mounted, cable suspension, bracket, tube suspension, ceiling-mounted, false-ceiling recessed, suspended, surface / suspended
Environment
indoor
Areas of application
offices, industrial areas, safety marking, public areas
ATEX
No
Mechanical data
Height
233 mm
Length
267 mm
Width
48 mm
Weight
0 kg
Body material
sheet steel
Body colour
white RAL 9010
IP rating
IP40
IK rating
IK05
Certifications and standards
EN IEC 60598-1:2024, EN 60598-2-2:2012, EN IEC 60598-2-22:2022, EN 62471:2008, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61000-3-3:2013, EN IEC 61547:2023, EN IEC 63000:2018, REG. 2019/2020(EU)
