Swiss Emergency Lighting

COMPLETA LED 24W SE 1/3 LF

4103N
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Supply range (min)
207 V
Supply range (max)
253 V
Frequency (min)
50 Hz
Frequency (max)
60 Hz
Power factor
0.06
Power consumption EM (max)
2.6 W
Monitoring system
TR
Operating mode
NP (non-maintained)
Rest mode
optional
Duration
1, 3 h
Recharge time
12 h
Battery type
lithium iron phosphate (LiFePO₄)
Battery
LiFe 3.2V 1.5Ah
Battery included
Yes
Number of batteries
1
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
Colour temperature
4000 K
CRI (colour rendering)
>80
Number of LEDs
24
Output SE
500, 180 lm
Equivalent power
24WGL
Photobiological risk
RG0
Viewing distance
15 m
Pictograms supplied
No
Glow-wire resistance
850 °C - 30s.
Light sensor
No
Environment
indoor
Areas of application
offices, industrial areas, public areas
ATEX
No
Height
34 mm
Length
126 mm
Width
294 mm
Weight
0.5 kg
Body material
polycarbonate
Body colour
white RAL 9003
Diffuser material
clear polycarbonate
Diffuser finish
clear
IP rating
IP40
IK rating
IK05
EAN
8002219878892

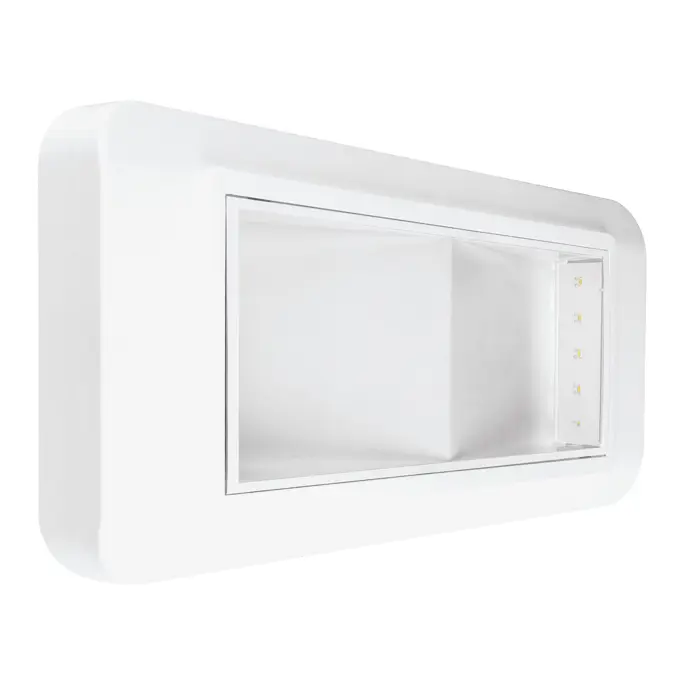

Completa LED 4103N
